HandiTrase

SoilMoisture HandiTrase
SoilMoisture HandiTrase

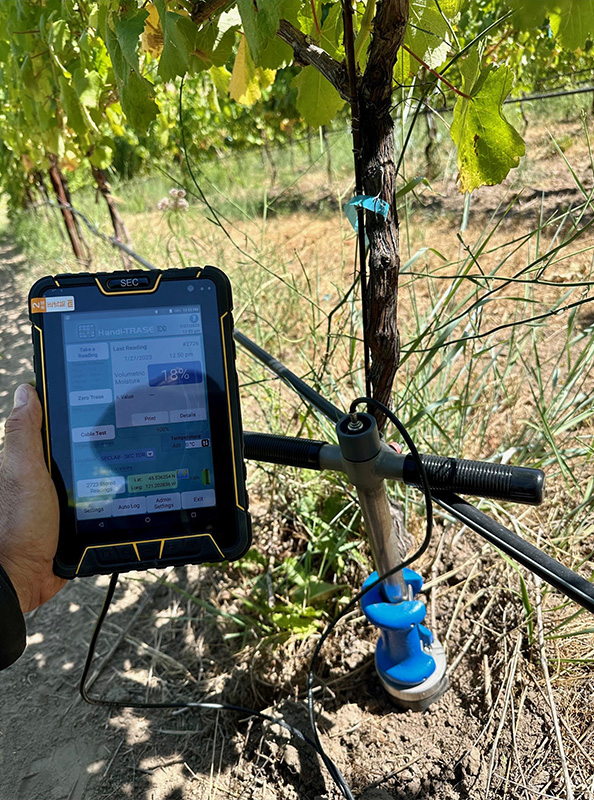

HandiTrase_4

The HandiTrase is the Only Portable Profiling Probe on the market measuring Volumetric Water Content down to 40 cm (16”).

Using SoilMoisture’s TDR Trase technology, it is the most field-tested and accurate probe of its kind. Available in various probe lengths.
Request a Quote

Configurations

HandiTrase TDR Soil Moisture Meter 0-100% VWC (Part Number 6085)

  • HandiTrase is a Volumetric Moisture Content sensor. It is a real TDR technology.
  • Accuracy +/- 2% or less of full scale
  • Measurement Range: 0% water content (oven dry soil) to 100% water content (pure water)


What’s in the box:

  • HandiTrase handheld TDR Android tablet and software app
  • Universal charger for HandiTrase unit
  • 3 ft. micro-USB to USB A cable
  • Quick Start Guide
  • Instructional video and pdf files are loaded in the unit.


HandiTrase TDR Soil Moisture Meter with CON probe, Part Number TR85-S (6085K1). Kit includes:

  • 6085 HandiTrase handheld TDR Android tablet, software and accessories
  • Standard waveguide connector handle
  • 15 cm (6 in.) long waveguide probe
  • 30 cm (12 in.) long waveguide probe


HandiTrase TDR Soil Moisture Meter with FCT probe, Part Number TR85-F40 (6085K2). Kit includes:

  • 6085 HandiTrase handheld TDR Android tablet, software and accessories
  • 40 cm (16 in.) Field Waveguide (Slammer)


HandiTrase TDR Soil Moisture Meter with FCT probe, Part Number TR85-FC40 (6085K3). Kit includes:

  • 6085 HandiTrase handheld TDR Android tablet, software and accessories
  • 40 cm (16 in.) Coated Field Waveguide (Coated Slammer) for high EC soils (More than 5 ds/m)


Works with all of our standard Waveguides: Buriable, Slammer and Standard Connector types.
Accuracy: +/- 2% or better.

There are a number of other waveguides available on our website for additional purchase or you can consult with us on designing a waveguide specific for your use.

TDR SYSTEM SPECIFICATIONS:

  • Works with all of our standard waveguides: Buriable, Slammer and Standard Connector types.
  • Accuracy: +/- 2% or better.
  • 10 ps resolution minimum sampling rate.
  • Measurement pulse: 1VPP, <130ps risetime (typical).
  • Cable measurements up to 250 feet. (used to validate Probe assemblies & extended Probe cable runs)
  • TOR graphic waveform analysis.
  • Automatic GPS Location tagging (User enabled)
  • Create Site Location Tags for any or all of your measurements.
  • Editable journal entries can be added to your measurements, even days later.
  • Export data to your desktop via Email, USB, USS-Ethernet, Bluetooth or WiFi.
  • Built-in camera to help document site conditions.
  • User-selectable English or Spanish languages.

HARDWARE SPECIFICATIONS:

  • Android OS 12 running on A53 4-core CPU @ 1.2GHz. 16GB Flash memory, 2GB for OS.
  • Display: 1280×800 full-color IPS capacitive touch screen.
  • SIM-card slot for Data modem & Phone. (WBCDMA, GSM/LTE & others)
  • Micro-SD memory expansion slot up to 32GB.
  • Cameras: 8MP front & 2MP rear.
  • USB 2.0-O TG, Bluetooth 4.0 & WiFi (B/G/N). (USS-Ethernet capable with optional dongle)
  • Charge port, 3.5mm audio headphone/microphone jack & flashlight.
  • Operating temperatures: -20 to +50C, storage temperatures: -40 to +60C.
  • Humidity 5 to 95% non-condensation.
  • Industrial Case: IP-67 & drop resistant from 1.2 meters.
  • 3.7V 7200mA Li-battery. (Lasts several days under constant use, over a week on standby)

Agricultural & Precision Farming

  • Field Moisture Mapping & Transects: Enables spatial profiling of soil moisture across fields to support precision irrigation and crop management
  • Optimizing Irrigation Scheduling: Provides real-time volumetric water content (VWC) data to avoid under- or over-watering

Remote Sensing Ground Truthing

  • Calibration & Validation: Calibration measurements for satellite or drone remote sensing of soil moisture, enhancing accuracy of remote datasets

Environmental & Hydrological Research

  • Research-grade In Situ Sampling: Offers a field-based alternative to oven-drying for moisture determination
  • Contaminated Site Monitoring: Supports tracking of soil moisture in remediation or ecological studies

Geotechnical & Construction Engineering

  • Site Investigation: Valuable in characterizing moisture variations in soils for slope stability, embankments, and dam foundations

Academic & Soil Science Studies

  • Pedological Research: Enables rapid profiling of moisture at multiple depths, aiding research into soil texture, structure, and hydrology

Precision Field Studies & Environmental Monitoring

  • Point Measurements in Diverse Conditions: Works from 0–100% VWC with ±2% accuracy—even in high-salinity or high-EC soils where other sensors struggle
  • Use in Extreme Soils: Coated probes resist corrosion; slam-in probes tolerate rocky/clayey soils

Soil-Probe Versatility & Depth Profiling

  • Multiple Probe Lengths: Configurable from ~8 cm to 60 cm, enabling measurements at varied soil horizons across disciplines

Field Data Management & Documentation

  • Integrated GPS & Geotagging: Records exact locations of readings for mapping and tracking
  • Onboard Camera & Journal: Captures site conditions and notes alongside each measurement
  • Rapid Data Export: Connectivity via USB, Bluetooth, Wi‑Fi, Ethernet, even cellular SIM-capable

Time-Sensitive Field Measurements

  • Fast Readouts: Each measurement in approximately 4 seconds enables high-throughput surveys
  • Portable & Rugged: Handheld ruggedized tablet device rated IP‑67, operating ± 20 °C to 50 °C, drop-resistant to 1.2 m
