This lightweight penetrologger of Royal Eijkelkamp is ergonomically designed and can measure up to a depth of 31.4 inch (80 cm). The penetrologger is used to measure the penetration resistance of the soil. The penetration resistance is a means to determine the carrying capacity of the soil and the ease with which roots can grow through the soil. This is important in agricultural, farming, and civil engineering techniques.

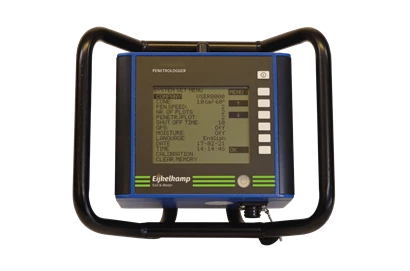

With the built-in data logger, the data is easily stored for further processing on your PC. The penetrologger contains an accurate internal GPS system (16 channels GPS receiver) to determine the exact measuring location. The coordinates stored in the penetrologger can be linked to a location or map using software (or less accurately via the Internet). The penetrologger results are displayed in MegaPascals (MPa) and Newtons (N) as a function of depth. The penetrologger also derives the Cone Index (CI).
| Penetrologger with GPS – standard set | |
|---|---|
| Angle of cone | 60 ° |
| Battery life | 8 hours |
| Cone surface range | 1, 2, 3.3, 5 cm² |
| Data output | .txt, other |
| Data plug type | RS232 |
| Data storage capacity | 1500 measurements |
| Data transfer | Cable |
| International Protection Rating | 54 |
| Maximum Applicable pressure | 10000 kPa |
| Maximum measuring depth | 31.4 inch | 80 cm |
| Maximum operating temperature | 50 ° |
| Measuring accuracy | < ± 1% |
| Measuring range | 0…10000 kPa |
| Minimum operating temperature | 0 ° |
| Product material | Stainless steel, iron, PVC, other material |
| Programming possibility | Yes |
| Reading accuracy | 0,1% |
| Registration type | Logging |
| Package size | 23.6 x 11.8 x 9.4 inch | 60 x 30 x 24 cm |
| Weight | 34.1 lbs | 15,5 kg |
